Time picker

The Time Picker control allows the user to select a time using a dialog window. The selected time information is passed to the controller.

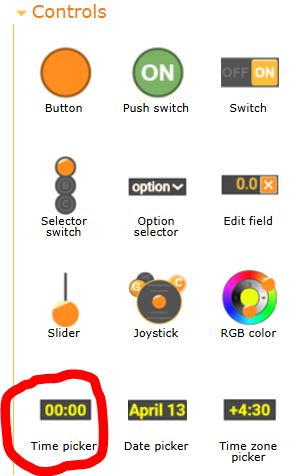

The Time Picker element is located on the Controls tab of the left panel in the editor. Click on the element's image and drag it onto the editor screen.

Data

An element can transmit data to the controller in two different ways, depending on the Data option setting.

Separately

Data	Type	Value	Direction
Hour	uint8_t	The selected hour, from 0 to 23.	input
Minute	uint8_t	The selected minute, from 0 to 59.	input
Second	uint8_t	The selected second, from 0 to 59.	input

One variable

Data	Type	Value	Direction
Milliseconds	int32_t	The number of milliseconds since midnight, from 0 to 86,399,000.	input

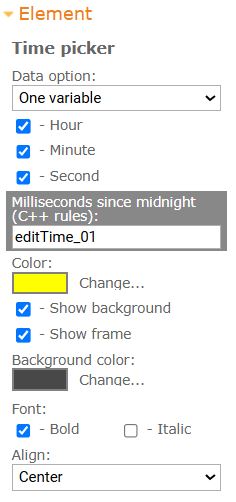

Settings

Data option. Specifies the method of transmitting data to the controller. The data can be sent either in separate variables or in a single variable.

Hour. Indicates whether the hour can be selected. A field for selecting the hour will be available in the time selection window.

Minute. Indicates whether the minute can be selected. A field for selecting the minute will be available in the time selection window.

Second. Indicates whether the second can be selected. A field for selecting the second will be available in the time selection window.

Variable. Specifies the name of the variable for data transmission. The name must follow C++ variable naming rules.

Color. Specifies the color of the element's characters.

Show background. Indicates whether the element's background is displayed.

Show frame. Indicates whether the element's frame is displayed.

Background color. Specifies the color of the element's background. If the background is not displayed, this color will be applied to the ftame.

Font

Bold. Indicates whether the text is displayed in bold.

Italic. Indicates whether the text is displayed in italics.

Display

The time in the element field is displayed according to the phone's settings. If the phone is set to a 12-hour time format, the time will be displayed and selected in 12-hour format with an AM/PM indicator.

In the controller, the time is always transmitted in 24-hour format, regardless of the phone's settings.

Operation description

When the user clicks on the element, a time selection dialog will open. Fields for selecting hours, minutes, or seconds will be displayed according to the element's settings.

Source code examples


struct {
  int32_t editTime_01; // milliseconds since midnight, from 0 to 86399000
} RemoteXY;
int32_t prevEditTime = 0;
void loop () {
  RemoteXY_Handler ();

  if (RemoteXY.editTime_01 != prevEditTime) {
    prevEditTime = RemoteXY.editTime_01;
    // TODO: The time has been changed.
    Serial.print (RemoteXY.editTime_01);
  }
}
